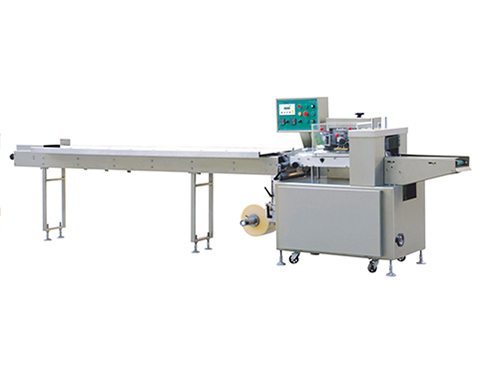

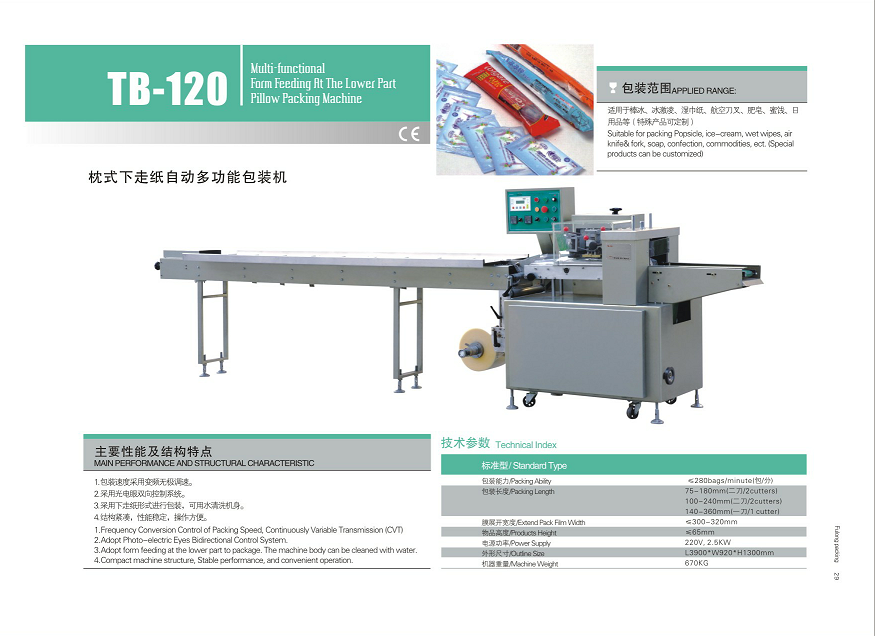

| 枕式下走紙自動多功能包裝機 |
主要性能及結構特點 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
1.包裝速度采用變頻無極調速。 2.采用光電眼雙向控制系統。 3.采用下走紙形式進行包裝，可用水清洗機身。 4.結構緊湊，性能穩定，操作方便。 1.Frequency Corversion Control of Packing Speed, Continuously Variable Transmission(CVT) 2.Adopt Photo-electric Eyes Bidrectional Control System. 3.Adopt form feeding at the lower pant to package. The machine body can be deaned with water. 4.Cormpact machine stucture, Stable performanoe, and corvenient operation.
|
| 技術參數 Technical Index | |
| 標準型/ Standard Type | |
| 包裝能力/Packing Ability | ≤280bags/minute(包/分） |
| 包裝長度/Packing Lengh | 75-180mm(二刀/2cutters) 100-240mm(二刀/2cutters) 140-360mm(一刀/1cutters) |
| 膜展開寬度/Extend Pack Film Width | ≤300-320mm |
| 物品高度Products Height | ≤65mm |
| 電源功率/Power Supply | 220V,2.5KW |
| 外形尺寸/Outline Size | L3900×W9200×H1300mm |
| 機器重量/Machine Weight | 670KG |
| 包裝范圍APPLIED RANGE: |
適用于棒水、冰激凌、濕巾。航空刀叉、肥皂、寶餞、日用品等(特殊產品可定制) Suitable for packing Popsicle, ice-cream, wet wipes, air knife&fork,soap,confection.commodftias, ect. (Special products can be customized |
