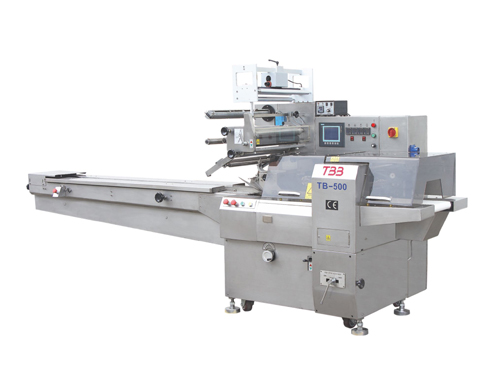

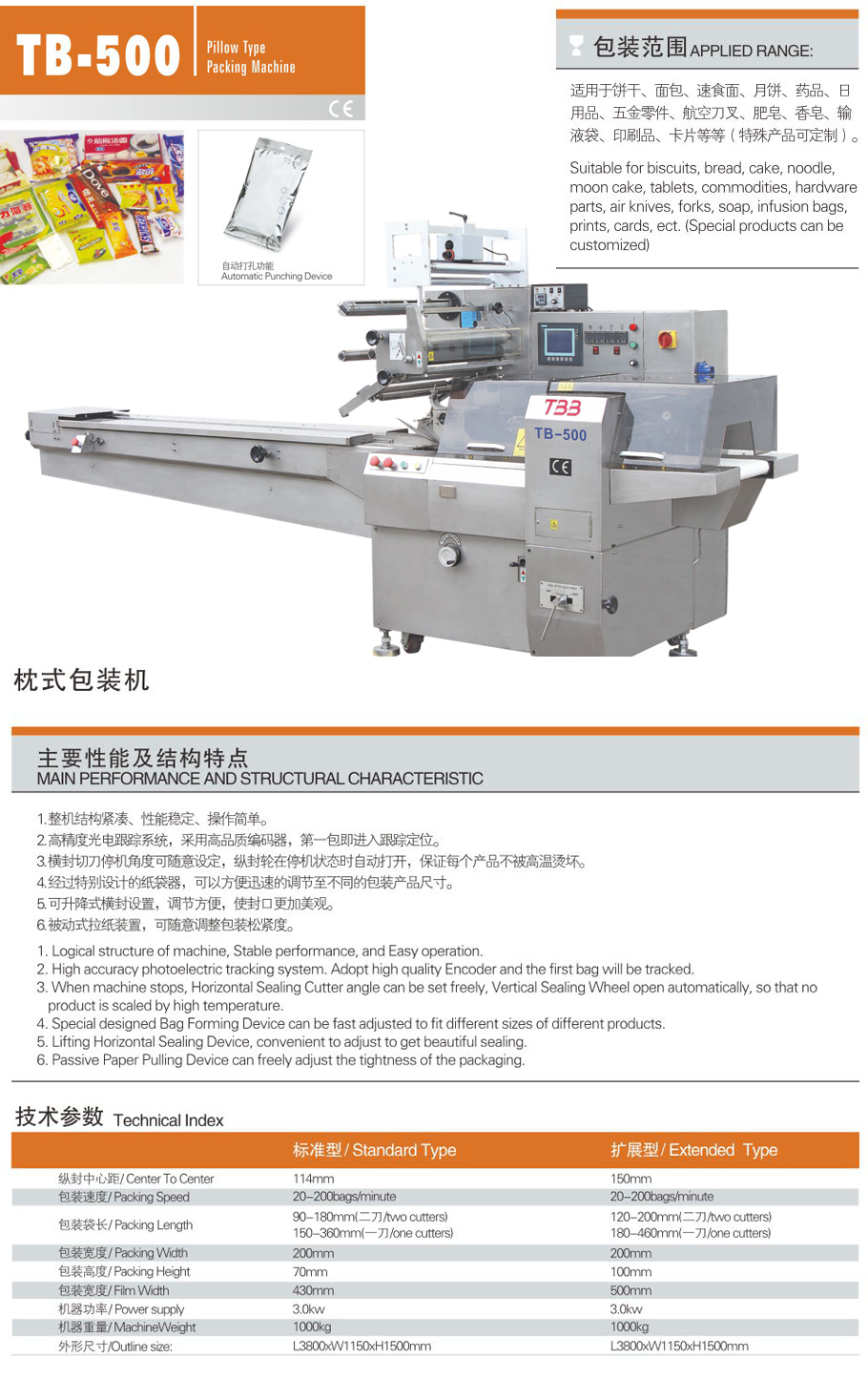

| 枕式包裝機 |
主要性能及結構特點 |
1.Logical structure of machine, Stable performance, and Easy operation. 2.High accuracy photoelectric tracking system. Adopt high quality Encoder and the first bag will be tracked. 3.When machine stops, Horizontal Sealing Cutter angle can be set freely, Vertical Sealing Wheel open automaticallyso that no product is scaled by high temperature. 4.Special designed Bag Forming Device can be fast adjusted to fit dfferent sizes of different products. 5.Lifting Horizontal Sealing Device, convenient to adjust to get beautiful sealing. 6. Passive Paper Plling Device can freely adjust the tightness of the packaging. |
| 技術參數 Technical Index |
| 標準型/Standard Type | 擴展型/Extended Type | |
| 縱封中心距/ Center To Center | 114mm | 150mm |
| 包裝速度/Packing Speed | 20-200bags/minute | 20-200bags/minute |
| 包裝袋長/ Packing Length | 90-180mm(二刀(two cutters) 150-360mm(一刀/one cutters) | 120-200mm(二刀/wo cuters) 180-460mm(一刀/one cutters) |
包裝寬度/ Packing Width 包裝高度/ Packing Height 包裝寬度/ Film Width | 200mm 70mm 430mm | 200mm 100mm 500mm |
| 機器功率/Power Supply | 3.0KW | 3.0KW |
| 外形尺寸/Outline Size | L3800xW1150xH1500mm | L3800xW1150xH1500mm |
| 機器重量/Machine Weight | 1000KG | 1000KG |
| 包裝范圍APPLIED RANGE: |
適用于餅干、面包、速食面、月餅、藥品、日用品、五金零件、航空刀叉、肥皂、香皂、輸液袋、印刷品、卡片等等(特殊產品可定制)。 Suitable for biscuits, bread, cake, noodle,moon cake, tablets, commodities, hardware parts, air knives, forks, soap, infusion bags,prints, cards, ect. (Special products can becustomized) |
