| 自動料理包裝機 |

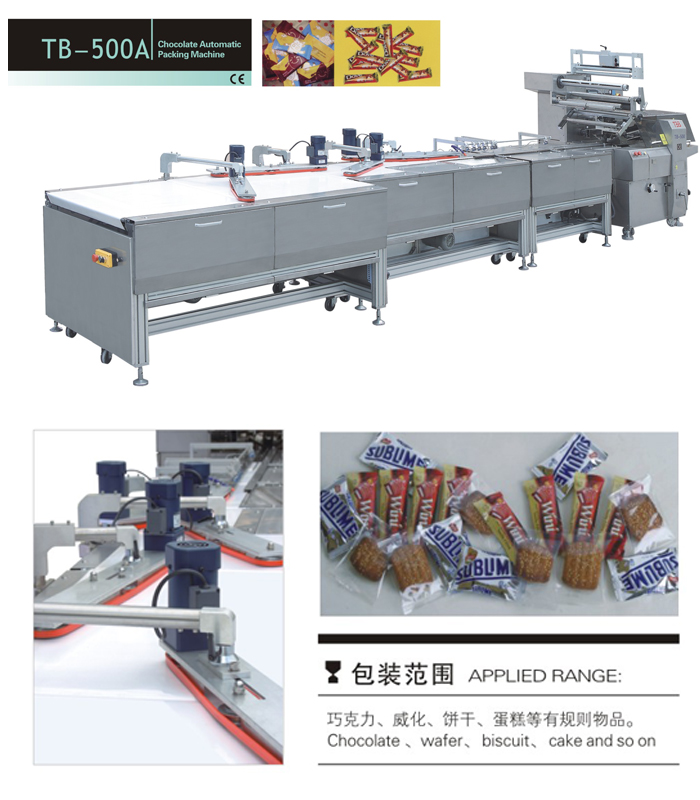

主要性能及結構特點 MAIN PERFORMANCE AND CONSTRUCTION CHARACTERISTIC |
1.chocolate was arranged by servo control system and PLC control system 2.chocolate automatic arrange in high speed then enter packing 3.the structure of machine is logical and prerformace is stable and easy to operate 4.angle of horizontal sealing cutter can be set at liberty, vertical sealing wheel can automatic open when machine stop so it can ensure 5.with LCD touch screen |
| TECHICAL PARAMETER | |
| LENGTH OF PACKING FILM | 60-90mm(four cutters) 75-120mml(three cutters) 75-180mm(two cutters) |
| PACKING SPEED | 50-460bags/min |
| POWER | 220v 4.5kw |
| OVERALL SIZE | L6700XW1060XH1700(mm) |
| WEIGHT | 1800KG |
| 技術參數 | |
| 包裝紙長度 | 60-90mm(四刀) 75-120mm(三刀) 75-180mm(二刀) |
| 包裝速度 | 50-460bags/min(包/分鐘) |
| 電源 | 220v 4.5kw |
| 機器尺寸 | L6700XW1060XH1700(mm) |
| 重量 | 1800KG |
| 包裝范圍APPLIED RANGE: | |
| 巧克力、威化、餅干、蛋糕等有規則物品。 Chocolate、wafer、 biscuit、 cake and so on | |
